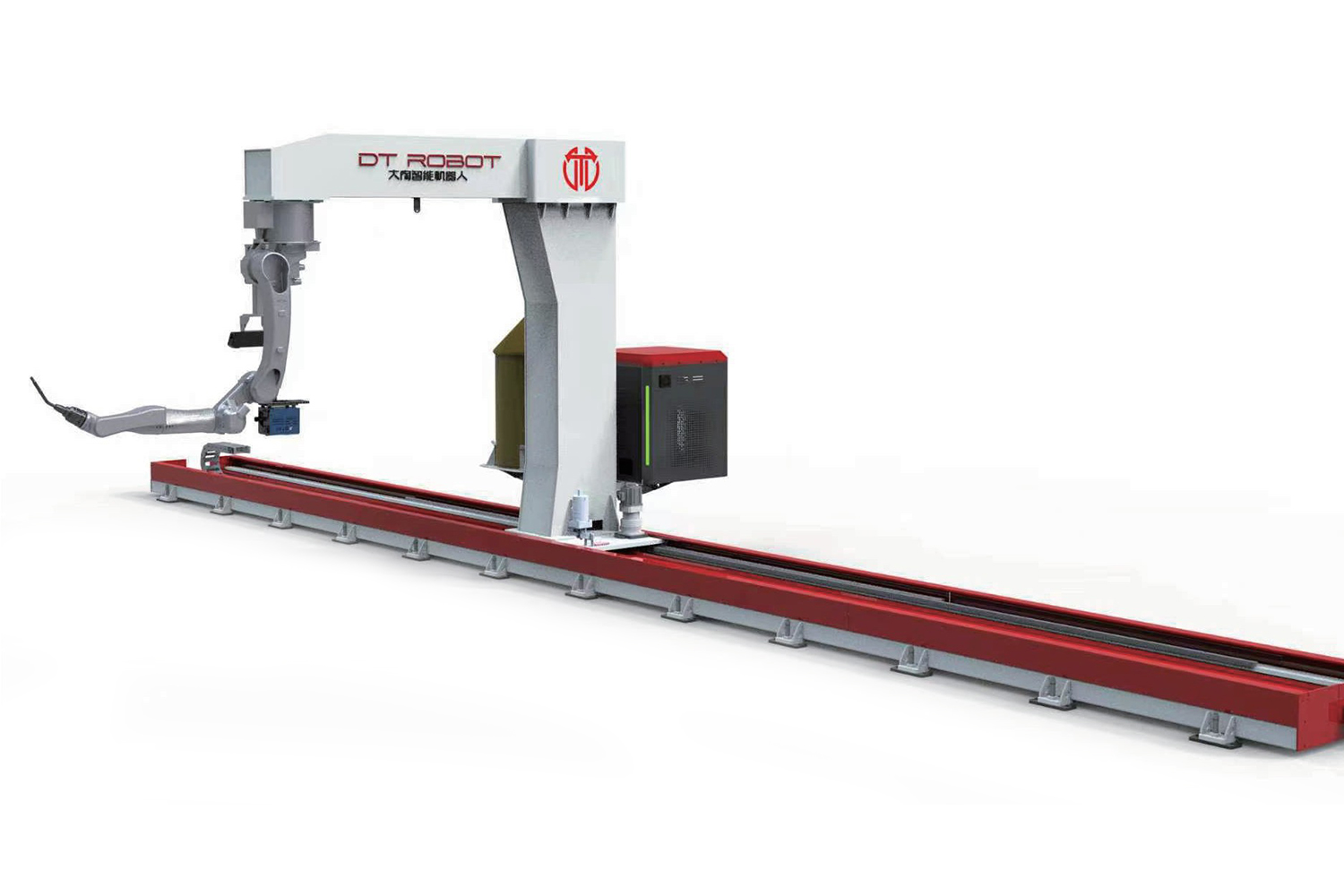

DT-V7-X
技术参数
| 机器人轴数Number of robot axes: 7axes | 地轨承载重量Ground rail load capacity: 6000kg |
| 运动半径 Motion radius:2010mm | 内置气管Built-in air pipe: 8mm |
| 可旋转角度Rotation angle:270° | 机器人重量Robot weight: 210kg |
| 加工行程 Processing stroke:3×2000mm | 重复定位精度Repeat positioning accuracy: ±0.05mm |
| 最大行走速度Maximum traveling speed:30m/min | 有效载荷 Rated payload: 12kg |
| 地轨尺寸Ground rail dimension: 900mm×12000mm | 电源容量 Power capacity: 4.3KVA |
产品配置
| No. | Product Name | Specifications/Model/Parameters |
| 1 | Intelligent Operating System | FSWELD3800/3800EC |
| 2 | 3D Camera | BCW600P |
| 3 | Torch Cleaning Station | ATO1S |
| 4 | Robot Floor Track | DTD12 (6–36 m, customizable) |
| 5 | Control Console | Vertical Integrated Control Console (customized by Datao) |
| 6 | Programming Handheld | WKB-SW Welding Handheld Unit |
| 7 | Robot Control Cabinet | DTG10(2nd Generation) |
| 8 | Robot | Reach: 2010 mm, Payload: 12 kg, Repeatability: ±0.05 mm |
| 9 | Linear Rails, Racks | Blackened and rust-removed, 30-series rails |
| 10 | Welding Machine | Aotai 500RP PLUS |
| 11 | Water-Cooled Welding Torch | ARH1850 |
| 12 | Enclosure | DT Vertical Integrated Enclosure |
| 13 | Cooling Water Tank | DTX10L |
 |
Product Features
· Point cloud reconstruction solution without the need for digital models · Initial positioning using large-scale line scans · Secondary editing of point cloud noise |
| Product Features
· High and low viewing distances; 2-in-1 coarse and fine positioning with a wide-area scan for coarse positioning · Fine positioning accommodates a maximum workpiece assembly error of ±30 mm · Suitable for environments with strong light , with strong anti-glare capability |
 |
 |
Product Features
· Compact and agile design, supporting installation in any orientation · Hollow wrist design with built-in welding torch cable to reduce interference and ensure smooth wire feeding · Positioning accuracy of ±0.05 mm, end-of-arm linear velocity of 2.5 m/s · Full parameter compensation, trajectory accuracy <0.4 mm · Advanced dynamic algorithms, path feedforward, and jitter suppression · Supports multiple communication protocols; simple and easy to use |
适用工艺
多层多道
连续焊
T型接焊
对接焊缝
其他
